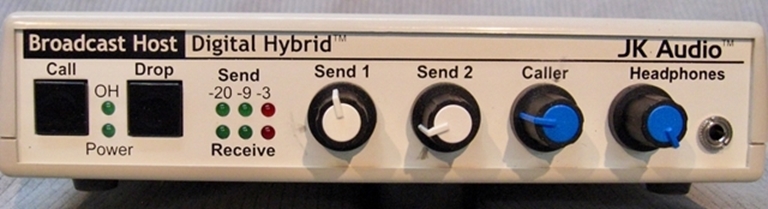

JK Audio Broadcast Host Telephone Interface
A compact desktop phone interface for splitting caller and talent audio. Good Condition with power supply.
The JK Audio Broadcast Host is an active Telephone interface device with multiple Inputs and outputs for all applications.
JK Audio's description tells it best:
Our Most Popular Digital Hybrid.
Broadcast Host turns your desktop into a professional broadcast center. Contains everything you need to get talk show quality phone recordings into your mixer or sound card. Connect a mic and headphones for a simple broadcast back to the station. Already at the station? Use Broadcast Host in your newsroom to record high quality interviews. Or, you can upload your recorded interview to your podcast.
Broadcast Host allows you to send mic and line level signals into the phone line while maintaining excellent separation between your voice and the caller.
The stereo output jack on the back of the unit provides your voice on one channel and only the caller’s voice on the other channel.
The balanced XLR output jack contains only the caller’s voice.

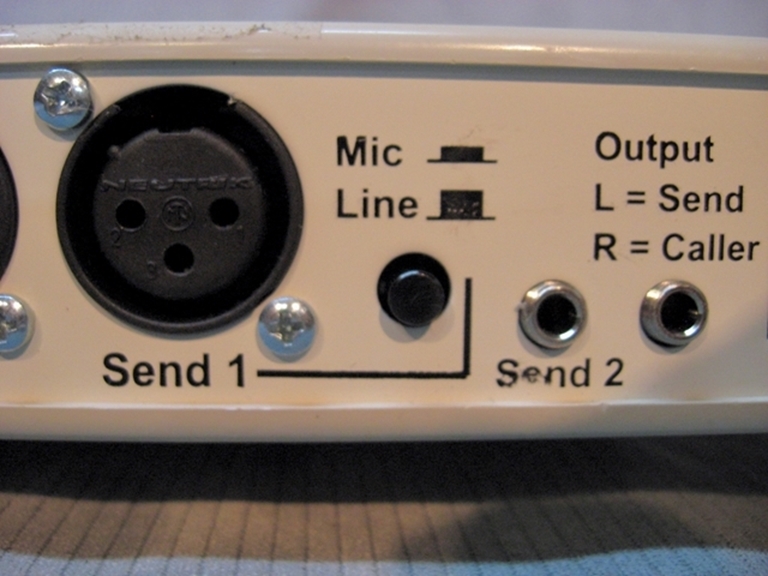

Send 1 Balanced Female XLR
Impedance 1k ohms
Level 15 mV RMS (-34 dBu nom)
Mic/Line Pad Switch +6 dBu max
Send 2 1/8" (3.5mm) Stereo Impedance 20k ohms
Level 250 mV RMS (-10 dBu nom)

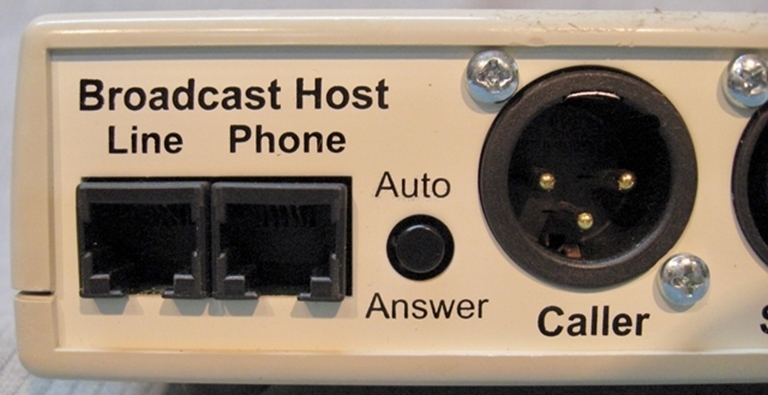

Caller Out Balanced Male XLR Impedance 200 ohms
Level 500 mV RMS (-4 dBu nom, +14 dBu max)

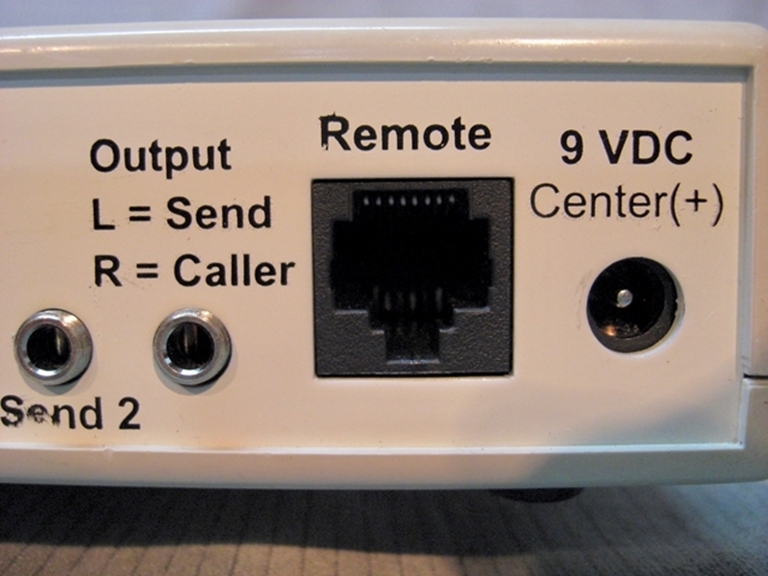

Caller Only Stereo Out 1/8" (3.5mm) Stereo Impedance 50 ohms
Level 250 mV RMS (-10 dBu nom, +6 dBu max)
Left = Send, Right = Caller
Headphone 1/8" (3.5mm) Impedance 8 ohms
Level 250 mW Mixed Send and Caller
Misc
Phone Line Connector RJ11C
Aux Phone Connector RJ11C
Ringer 0.8B REN
Isolation 1500 VAC
Frequency Response Telephone Side 200 Hz-3600 Hz
Power 120-240 VAC Power Supply
Size 7" x 6" x 1.6" (18 x 15 x 4.2 cm)
Weight 2.2 lbs. (1kg)
